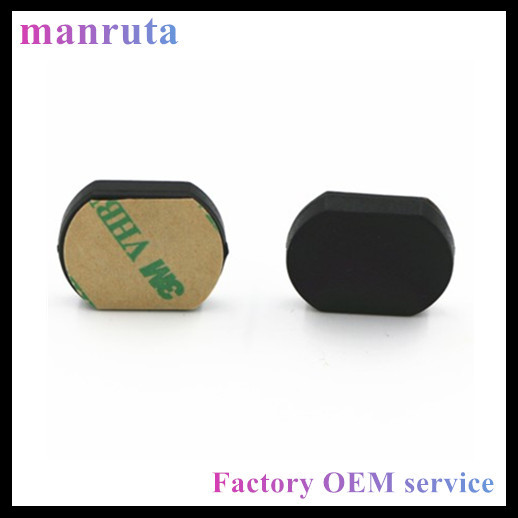

High Temperature RFID Metal Tag for industry management
|
|
||||
Product Description
This tag is designed on PPA or ceramic base material, solving the problem that tag can’t work well on the metal surface and work continuously in the high temperature environment (Withstanding 200℃ for one hour).
It mainly is designed for metallic mold tracking,metallic high-temp container, etc.
Features:
| Physical Features: | |||
| Model | MRT-9002 | Name | UHF High-temp On-metal Tag |
| Material | PPA/Ceramic | Color | Black |
| Dimensions | 24.5*19.4*4.0mm | Weight | 5.1 g |
| Working Temp | -40℃~+200℃ | Storage Temp | -40℃~+200℃ |
| IP Rating | IP68 | Humidity | 98% Non-condensing |
| RFID Features: | |||
| RFID Standard | ISO/IEC 18000-6 TypeC (EPC Gen2) | ||
| Chip Type | Alien Higgs-3 | ||
| EPC Memory | 96 bits to 480 bits | ||
| User Memory | 512 bits | ||
| Read Range | 902-928 MHz | 2.0-3.0m | |
| 865-868 MHz | 1.5-2.5m | ||
| Other Features: | |||
| Data Storage | > 10 years | ||
| Re-write | 100,000 times | ||
| Installation | 3M VHB Adhesive | ||
| Customization | Printing LOGO, Encoding, Designing,etc | ||
Application
|
Ø High-temp container management Ø Metallic Mold management, Ø High temperature furnacet, Ø Industrial manufacturing,etc |
||
