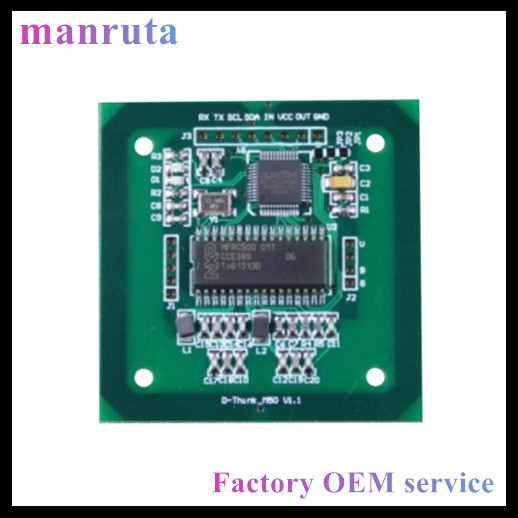

13.56mhz HF ISO14443A embedded reader module
|
|
||||||
Product Description
parameters:
| Model |
Manruta-M50X |
| Frequency |
13.56MHz |
| Protocol |
ISO 14443A |
| Support Chips |
MF®1k S50, MF®1k S70, MF®UltraLight, MF®UltraLight C |
| Read/write Distance |
8CM(depending on the antenna structure and used environment) |
| Communication Interface |
Optional: IIC, Uart, USB-TTL, USB-HID |
| Operating Mode | By the hardware is configured for active operation or command operation |
| Operating Voltage |
4.5V~5.5V |
| Operating temperature |
-25°C-70°C |
| Dimension |
50*50*3.6mm |
