MIFARE OEM Writer SL032
|
|
||||||
Product Description

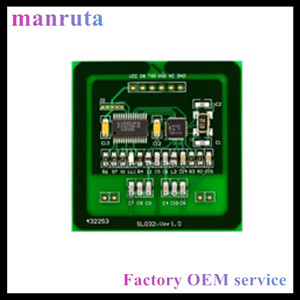

Being developed based on NXP s low power transponder ICs, HF RFID Module SL032 is a mini MIFARE® reader/writer. This OEM RFID module supports MIFARE Classic® 1K, MIFARE Classic® 4K, MIFARE Ultralight®, MIFARE DESFire® and is applicable for 13.56MHz. Its maximum working current and sleep current are 45mA and 10uA respectively. In addition, it integrates all necessary components and antenna in one PCB.
| Frequency | 13.56MHz |
| Protocol | ISO14443A |
| Tag supported | MIFARE Ultralight®, NTAG203, MIFARE Mini, MIFARE Classic® 1K, MIFARE Classic® 4K, FM11RF08, DESFire® |
| Interface | UART |
| Supply voltage | 2.5 - 3.6 VDC |
| Dimension | 46 × 46 mm |
