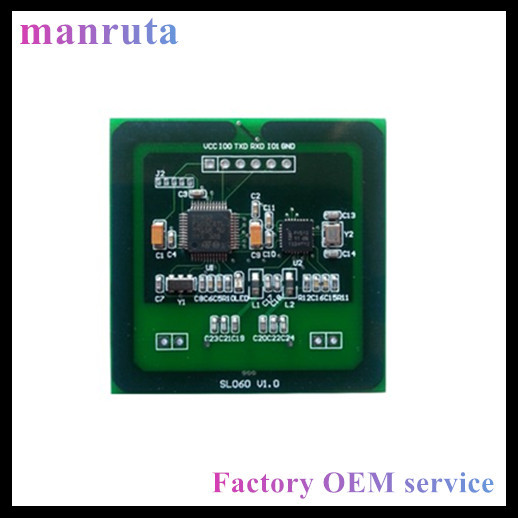

NFC Reader/Writer Module SL060
|
|
||||||
Product Description
Being developed based on NXP’s NFC transponder IC, NFC Module SL060 is a mini NFC reader/writer. This RFID module supports MIFARE Classic® 1K, MIFARE Classic® 4K, MIFARE Ultralight®, MIFARE DESFire® and NFC NFCIP-1 mode. The maximum working current is less than 50mA. It integrates all necessary components and antenna in the PCB.
SL060 can offer NFCIP-1 functions. Users can send NFC message to NFC device to open a web URL or display text words in the window.
| Frequency | 13.56MHz |
| Protocol | ISO14443A, ISO18092 NFCIP-1 |
| Tag supported | MIFARE Ultralight®, NTAG203, MIFARE Mini, MIFARE Classic® 1K, MIFARE Classic® 4K, FM11RF08, DESFire® |
| Interface | UART |
| Supply voltage | 2.5 ~3.6 VDC |
| Dimension | 46 × 46 × 3 mm |
| Operating distance | Up to 50mm, depending on tag |
| Operating Temperature | -25 ~ +70°C |
| Storage Temperature | -40 ~ +85°C |
