HF NFC dry/wet inlay
Name:HF NFC dry/wet inlay
Model No:

Product Description

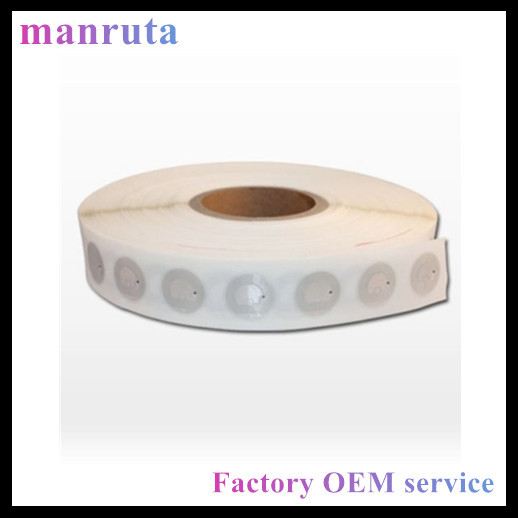

13.56 mhz Passive HF ntag216 rfid inlay dry / wet inlay smallest 25mm round nfc tag sticker

Physical information

Material

PET, Paper, PVC

Dimension

round inlay size: 50mm / 40mm / 35mm / 32mm / 30mm / 25mm

smallest round inlay size: 25mm

square inlay size: 86.5x54mm, 42x27mm , 44x44mm, 50x50mm , 80x50mm, 30x15mm, etc

smallest square inlay size: 20x20mm

Inlay construction

aluminum antenna + rfid / nfc chip + PET with glue or not

dry inlay without glue

wet inlay with glue

Feature

inlay is ok to use single, or can be used to produce into label

Application

access control system, electronic ticket payment, medical, asset, industrial , wide applications in all places that require contactless near field management.

RFID specification

Frequency

13.56mhz, 860-960mhz

Protocol

ISO14443A, ISO15693

HF chip

Ntag213 / 215 / 216, Ultralight EV1, Ultralight C,

desfire 2k / 4k / 8k , fudan f08 , S50 / S70

i code sli, i code sli-l , i code slix-s, i code slix-l , i code sli-s

Read Distance

1-5m for UHF

1-10cm for HF

1-2cm for LF
